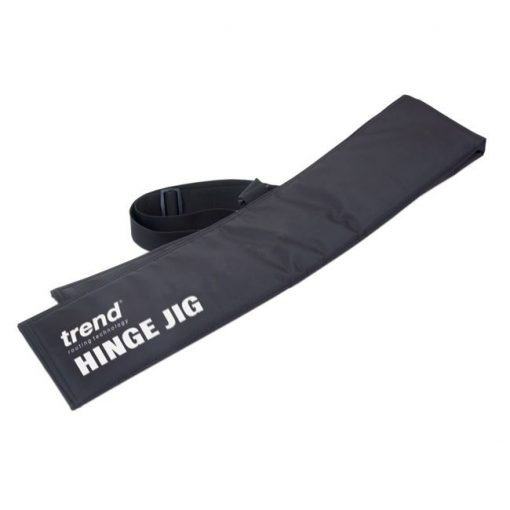

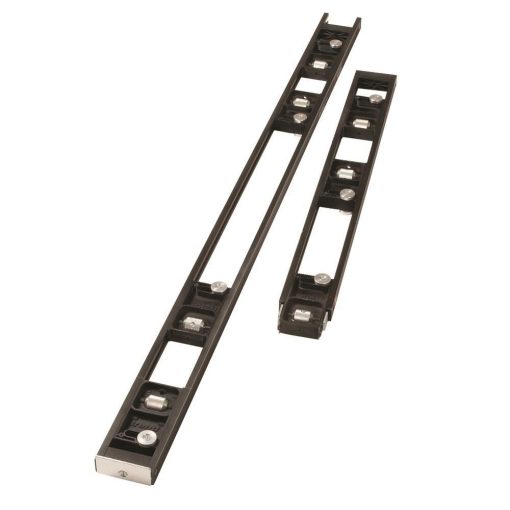

TREND H/JIG/C HINGE JIG SKELETON TWO PART IN CASE

£169.47 £141.23 (EX. VAT)

It is easy to use with minimal setting-up time, ensuring that the job can be completed accurately and quickly. It is ideal for use on-site and in joinery shops to increase productivity with excellent results.

The jig has fully adjustable apertures for fire door requirements and renovation work. It is ideal for fitting a new door into an old frame, and is suitable for timber based doors and square butt hinges.

2 in stock

EAN: 5027654559345 SKU: H/JIG/C Categories: , ,

TREND H/JIG/C HINGE JIG SKELETON TWO PART IN CASE

FEATURES

  • It is easy to use with minimal setting-up time, completing the job both accurately & quickly
  • Used on-site & in joinery shops to increase productivity with excellent results
  • Fully adjustable apertures for fire door requirements and renovation work
  • Idea for fitting a new door in an old frame
  • No need for marking out in the conventional way
  • Quick & simple to set-up as the hinge is used as the pattern
  • Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges
  • Use with a light duty plunge router with 1/4 inch collet
  • Long reach router cutter required, 12mm diameter with 70mm overall length

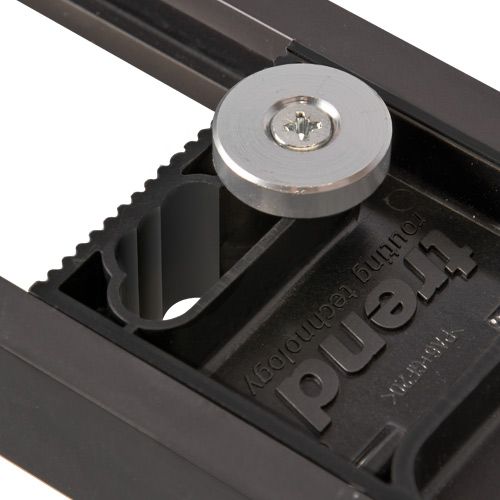

  • Adjustable edge guides with pre-set for hinge of 20mm, 25mm and 30mm

SPECIFICATION

  • Hinge Sizes Possible:
  • Length (Min.): 2 5/8″ (67 mm)
  • Length (Max.): 5″ (127 mm)
  • Width (Min.): 1/2″ (12.7 mm)
  • Width (Max.): 1 3/8″ (35 mm)
  • Door Sizes Possible:
  • Height (Min.): 6′ 5″ (1956 mm)
  • Height (Max.): 2100 mm* (6′ 10″*)
  • Thickness (Min.): 5/8″ (16 mm)
  • Thickness (Max.): 2″ (51 mm)
  • Weight: 2.9 kg
  • Jig Overall Length 1956 mm
