Powerful and safe:

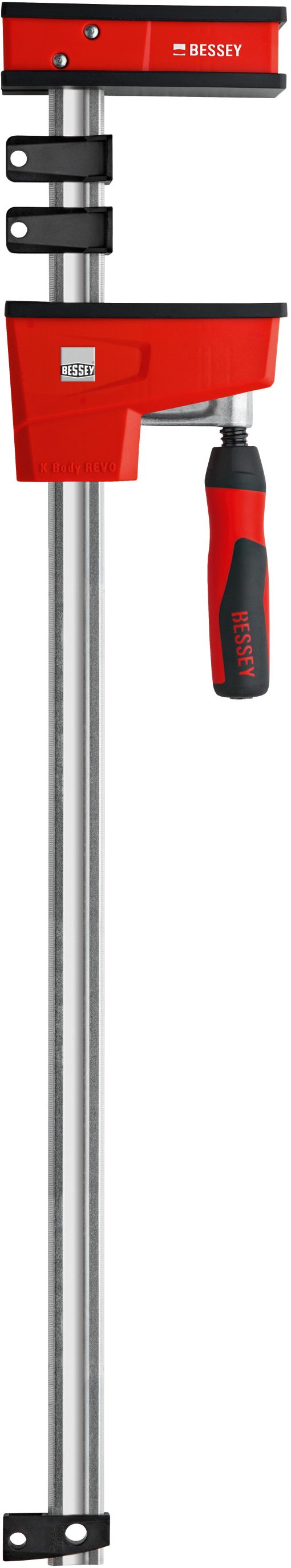

With up to 8,000 N of clamping force, the new REVO KRE body clamp has a powerful grip thanks to its metal-reinforced plastic housing and optimised sliding arm. The double slide protection holds the clamp reliably with the set clamping force and prevents any unintentional slipping of the sliding arm when in the unclamped position. In addition, the innovative body clamp design has an ergonomically shaped twin-component plastic grip with an internal hex. This enables you to apply the clamping force in a convenient manner with a maximum tightening torque of 17 Nm.
Precise and gentle:
Like its well-established predecessor, the new REVO KRE body clamp is universally applicable – even behind and at the sides of the profiled rails. This allows you to clamp in locations that conventional Screw Clamps are unable to reach. They can even get to grips with pointed and rounded surfaces. Craftsmen enjoy being able to adjust them to the precise setting for corners and stepped edges. The large clamping surfaces, which sit at right angles to the rail, have three removable and glue resistant protective caps. The two detachable work piece supports can be shifted along the rail to elevate fragile wood surfaces from the rail surface. These prevent the grooved steel rail from making contact with the workpiece.
Fixed and variable:
The REVO KRE body clamp is available in clamping widths ranging from 30 cm up to 2.5 m. The KREV vario version of the tool covers clamping widths of over 1 m. The variable model is equipped with an infinitely adjustable top section that can be shifted at the touch of a button. When it is positioned in the centre of the workpiece, the weight can be well distributed – especially when an object is clamped for an extended period. Irrespective of whether you choose the variant with the fixed or variable head, both models are equipped with an end stop that can be removed without the need for tools. As a result, removing the sliding arm from the rail and repositioning it for an extension application is very straightforward.
Versatile and well thought out: The new KRE and KREV body clamps are part of a broader clamping concept. The clever accessories are compatible with both the older and newer generation of clamps and pave the way for many other potential applications. For example, by using the KBX extension, two clamps can be cleverly combined in order to increase the clamping width up to a maximum of 5 m. For clamping at non-right angles, the KR-AS tilting adapter is available. It can be easily slid onto the clamping jaws and is infinitely adjustable within a tilting range of 30 degrees . The REVO
body clamp has a practical extra feature for clamping frames: the variable frame press KP. It consists of four 90 degrees angles. It can be used to custom-adjust the clamping pressure by inserting two clamps per corner. Finally, theTK6 table clamps can be used to easily secure the clamps and their workpiece contact surfaces to a workbench.
